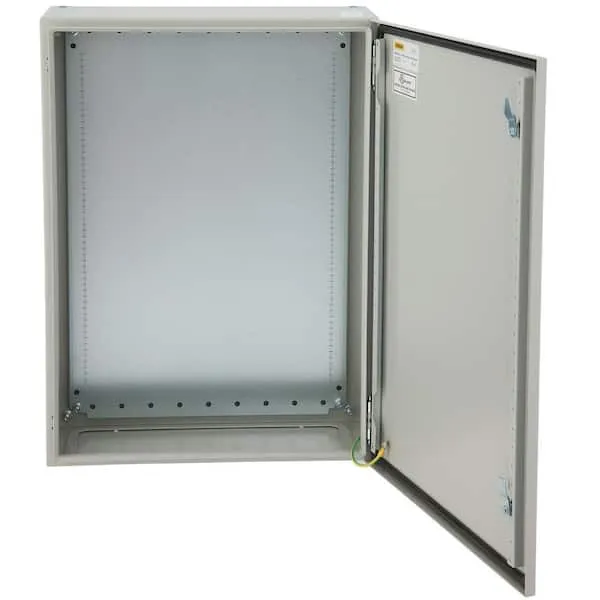

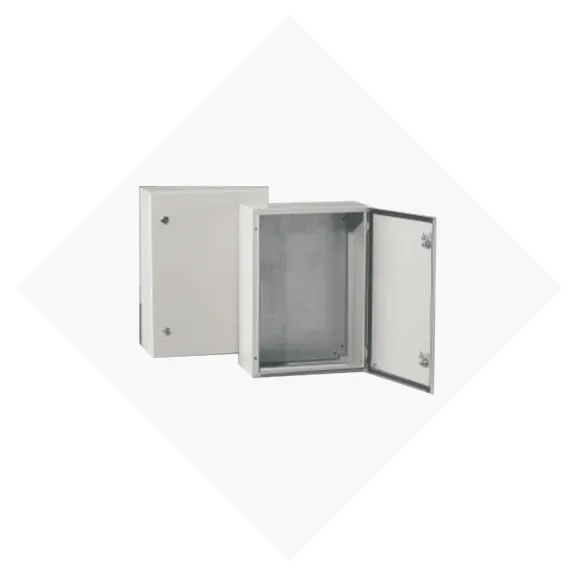

RR weather Proof Metal Enclosures [IP65] are designed to accommodate various types of switchgear Control gear assemblies, Network communication and Automation product assembly to suit a variety of electrical installations in Residential, commercial and industrial buildings.
SPECIFICATIONS & FEATURES:
- Made of high quality electro-galvanized steel sheet of thickness up to 1.5mm
- Matt-finish polyester powder coated in RAL-7032 light grey
- Standard mounting plate made of hot dip galvanized steel sheet of 2mm thickness with holes for strips
- Complies with IEC 60529/62208 standards
- Complies with CE standards
- Degree of protection IP65
- Earthing studs are provided on both the enclosure and the door
- CNC machine formed polyurethane gasket for reliable sealing
- Corner formed door ensures better weatherproofing and gives aesthetic looks
- Easily removable hinges, ideal for changing the door opening direction [for certain sizes]
- Special profiled lip for better waterproofing
- Lock features: - Quarter turn cylindrical lock - Metal keys and locking mechanism for durability key engaged when the lock is open
- A kit containing assembly hardware and instruction manual is provided with the enclosure
SIZES
- RR-WPEN8-1025: 1000x800x250
- 1000 x 800 x 250 Metal Wall Mount Enclosure, Door & Body 1.5MM THK, Orange MP 2MM THK, IP65
- RR-WPEN2-2515: 250x200x150
- 250 x 200 x 150 Metal Wall Mount Enclosure, Door & Body 1.2MM THK, Orange MP 2MM THK, IP65
- RR-WPEN25-315: 300x250x150
- 300 x 250 x 150 Metal Wall Mount Enclosure, Door & Body 1.2MM THK, Orange MP 2MM THK, IP65
- RR-WPEN3-415: 400x300x150
- 400 x 300 x 150 Metal Wall Mount Enclosure, Door & Body 1.2MM THK, Orange MP 2MM THK, IP65
- RR-WPEN3-420: 400x300x200
- 400 x 300 x 200 Metal Wall Mount Enclosure, Door & Body 1.2MM THK, Orange MP 2MM THK, IP65
- RR-WPEN4-420: 400x400x200
- 400 x 300 x 200 Metal Wall Mount Enclosure, Door & Body 1.2MM THK, Orange MP 2MM THK, IP65
- RR-WPEN4-520: 500x400x200
- 500 x 400 x 200 Metal Wall Mount Enclosure, Door & Body 1.2MM THK, Orange MP 2MM THK, IP65
- RR-WPEN4-620: 600x400x200
- 600 x 400 x 200 Metal Wall Mount Enclosure, Door & Body 1.2MM THK, Orange MP 2MM THK, IP65
- RR-WPEN5-720: 700x500x200
- 700 x 500 x 200 Metal Wall Mount Enclosure, Door & Body 1.2MM THK, Orange MP 2MM THK, IP65
- RR-WPEN6-820: 800x600x200
- 800 x 600 x 200 Metal Wall Mount Enclosure, Door & Body 1.5MM THK, Orange MP 2MM THK, IP65
- RR-WPEN6-825: 800x600x250
- 800 x 600 x 250 Metal Wall Mount Enclosure, Door & Body 1.5MM THK, Orange MP 2MM THK, IP65
Protect your critical electrical components with the RR Weatherproof Metal Enclosure designed for electrical applications. Crafted from high-quality metal, this weatherproof enclosure is engineered to safeguard your electrical equipment from the elements, ensuring longevity and reliable operation. Whether it's for outdoor installations or harsh environments, the RR Weatherproof Metal Enclosure offers a secure and durable housing solution. Trust Supply Master in Accra, Ghana, for top-tier electrical enclosures that keep your equipment safe and operational.
