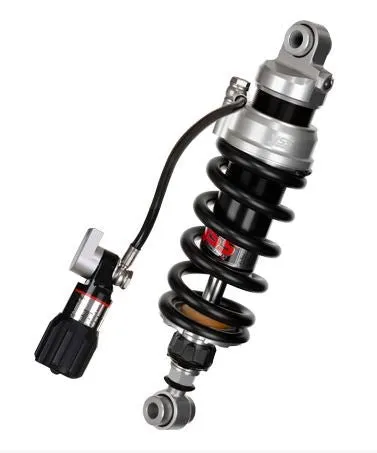

Technical Specifications - Topline Rear Mono Shock (2018-)
Product Overview:
- Year: 2018-
- Product Group: Topline
- Shock Type: Rear Mono Shock
- Product Type: Emulsion Gas Shock
- ABE: Not Applicable
Dimensions:
- Length: 315-325 mm
- Top Diameter: 12.7x32 mm
- Bottom Diameter: 12.7x40 mm
- Spring Dimensions: 56-110-165 mm
- Piston Size: 45 mm
- Shaft Size: 16 mm
Adjustability Features:
-
Hydraulic Spring Preload Cable:
- Description: Innovative Hydraulic Spring Preload on Hose design, featuring a hose-mounted knob for convenient accessibility. Facilitates easy adjustment through a hydraulic line.
-
Rebound Adjustable:
- Description: Precision control over shock absorber recovery speed, catering to varying driver preferences. Features a volume control knob, needle shaft, Free Bleed oil through hole, and a knob Rebound with a time adjustment dial.
-
Length Adjustable:
- Description: Offers adjustable shock absorber length, providing customization possibilities. Two upgrade options: 10 mm or adjustable lengths within a range of /- 5 mm.
